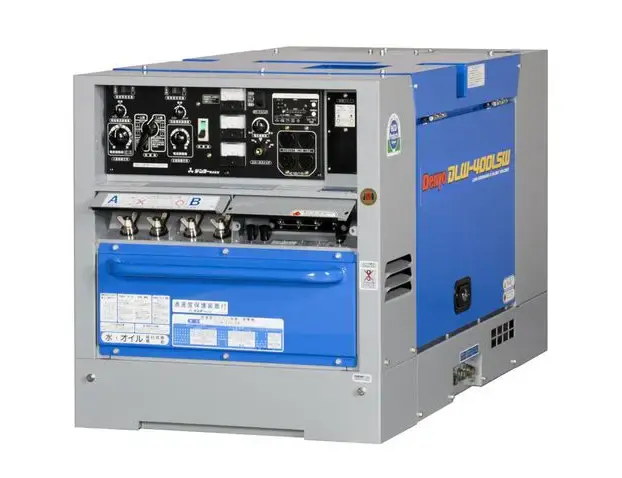

MMA焊机 DLW-400LSW 柴油防音型電焊機

工作场所的精度和功率
IGBT斩波器控制系统
Denyo作为户外电源的先驱，在全球享有盛名。Denyo的产品不仅用于建筑业和制造业，而且还用于石油和天然气以及采矿工作场所。Denyo提供日本产品特有的优良性能和坚固性，并有在极度寒冷的野外和极度炎热的沙漠中使用的记录。

双操作员焊接
能够有两个人使用一台焊接机，肯定会大大提升工作效率。Denyo发动机驱动的焊接机可以由两个人同时进行焊接。这有助于降低焊接机的采购成本，并大大促进工作效率的提高。

规格
型号。DLW-400LSW
额定输出。
- 单机：50Hz 12.9kW / 60Hz 13.9kW
- 双：50Hz 5.07x2kW / 60Hz 5.42x2kW
额定电流。
- 单：50Hz 370amp / 60Hz 390amp
- 双：50Hz 185amp / 60Hz 195amp
电压。
- 单：50Hz 34.8V / 60Hz 35.6V
- 双：50Hz 27.4V / 60Hz 27.8V
焊接电流范围。
- 单：50Hz 60-380A / 60Hz 60-400A
- 双：50Hz 30-190A / 60Hz 30-200A
额定负载：100%
适用的电极。
- 单个。Ø2.0 - 8.0mm
- 双人。Ø2.0 - 4.0mm

交流电源
频率：50/60Hz
额定输出。15kVA
电压：200/220/230/240V或380/440V
相位。3相，4线
功率因数：0.8
发动机。久保田D1105-K3B
燃料: 柴油
燃油消耗量。 3.14 / 3.69L/h
油箱容量: 42L
排放法规。Tier 3(日本法规)
尺寸长×宽×高：1,520×700×770毫米
重量：471公斤
噪音水平（从7米处）：50Hz 64dB / 60Hz 67dB

选配件
●非标准要求请联系您的供应商。
●远程控制器
●避火器
等等

PRECISION AND POWER FOR WORK SITES
IGBT chopper control system
Denyo has a reputation globally as a pioneer in outdoor power sources. Denyo products are used not only in construction and manufacturing, but also at oil & gas, and mining work sites. Denyo offers the excellent performance and ruggedness unique to Japanese products, and have a track record of use in extremely cold wilderness and extremely hot desert.

DUAL OPERATOR WELDING
Being able to have two people to use a single welding machine will surely and greatly improves work efficiency. Denyo engine driven welders can be used for welding by two people at the same time. This helps reduce purchasing costs for welding machines and contributes significantly to work efficiency improvements.

Specifications
Model: DLW-400LSW
Rated Output:
- Single: 50Hz 12.9kW / 60Hz 13.9kW
- Dual: 50Hz 5.07x2kW / 60Hz 5.42x2kW
Rated Current:
- Single: 50Hz 370amp / 60Hz 390amp
- Dual: 50Hz 185amp / 60Hz 195amp
Voltage:
- Single: 50Hz 34.8V / 60Hz 35.6V
- Dual: 50Hz 27.4V / 60Hz 27.8V
Welding Current Range:
- Single: 50Hz 60-380A / 60Hz 60-400A
- Dual: 50Hz 30-190A / 60Hz 30-200A
Rated duty: 100%
Applicable electrode:
- Single: Ø2.0 - 8.0mm
- Dual: Ø2.0 - 4.0mm

AC Power
Frequency: 50/60Hz
Rated output: 15kVA
Voltage: 200/220/230/240V or 380/440V
Phase: 3-Phase, 4 wire
Power Factor: 0.8
Engine: Kubota D1105-K3B
Fuel: Diesel
Fuel Consumption: 3.14 / 3.69L/h
Tank Capacity: 42L
Emission Regulation: Tier 3(Japanese regulation)
Dimension L×W×H: 1,520×700×770mm
Weight: 471kg
Sound Level (From 7m): 50Hz 64dB / 60Hz 67dB

Options
●Contact your supplier for non-standard requests.
●Remote Controller
●Spark arrester
●et cetera
